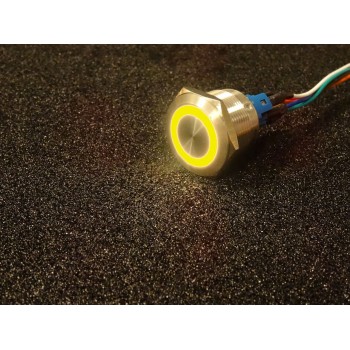

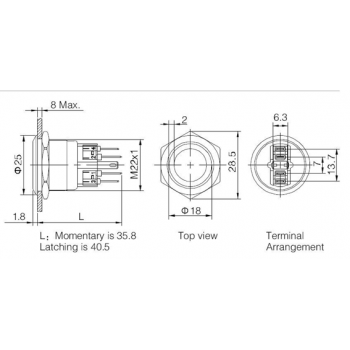

22mm momentary pushbutton with tri colour (RGB) LED ring.
- 12V Red, Green and Blue LED
- Presoldered wiring to be used with SmartEVSE v3
- Waterproof IP65, with rubber ring.
- Plugs directly into the SmartEVSE v3.
- Wiring 45cm long.
- Stainless steel.
Use this pushbutton to stop charging the EV, and switch between Smart charging and Solar charging.
The RGB led will light up in various ways to indicate different charging states:
Off |
Access denied (Configurable in menu) |
Dimmed Green |
Unconnected, Ready to Charge |
Bright Green |
Connected, Ready to Charge |
Green fading in/out |
Smart Charging |
Yellow slow Fading in/out |
Solar Charging |
Short Green or Yellow blinking |
Charging Stopped, please remove charging cable. Waiting for Solar power (Solar mode) |
Red fast blinking |
Error (Communication Error or Temperature to high) |
The use of this pushbutton/status indicator requires a SmartEVSE v3.
Future firmware versions might change the behavior of the LED and pushbutton.
